Robots

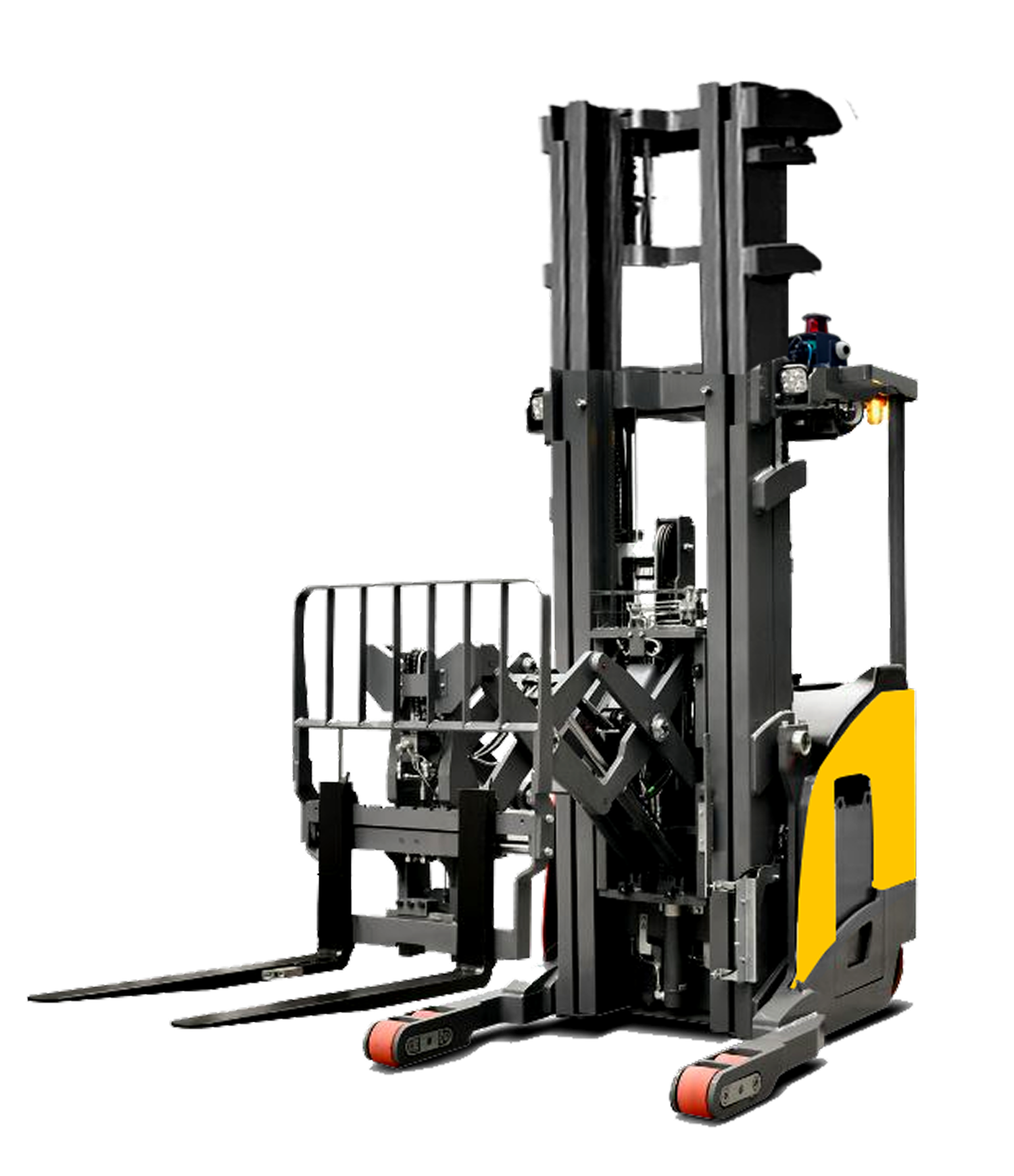

Autonomous Scissor Reach Truck

When space is tight and efficiency is non-negotiable, our Scissor Reach Trucks step in. The Single Deep model is built for high rack storage in narrow aisles, agile, powerful, and purpose-built for retail, cold storage, and industrial setups.

Need more from the same footprint? The Double Deep variant reaches further, accessing two pallet positions deep to unlock serious space savings in dense logistics and cold chain operations. Both deliver high capacity with precision handling, turning cramped aisles into high-performance zones.

Download Brochure

Ares

SD2000

Type

Single Deep Scissor

Max Travel Speed

4.4 mph (1.5 m/s)

Lift Height

33 ft (10160 mm)

Ares

DD1400

Type

Double Deep Scissor

Max Travel Speed

4.4 mph (1.5 m/s)

Lift Height

See it in Action

Features

LiDAR Sensors – Scanning

Equipped with sensors, cameras and LiDAR systems to detect obstacles and people in their path. They can slow down or stop to prevent collisions

3D Camera

Designed to detect obstacles in their path and take evasive action to avoid collisions, such as stopping, changing direction, or backing up

Safety features

Robot is equipped with collision avoidance technology and emergency stop for operating safety.

E Stop Buttons

Equipped with sensors, cameras and LiDAR systems to detect obstacles and people in their path. They can slow down or stop to prevent collisions

LiDAR Sensors – SLAM

Programmed to operate within specific zones, and they can be configured to slow down or stop when entering restricted areas or high-traffic zones

Powerful Software

Intuitive, real-time control platform for monitoring, managing, and optimizing robot performance. Providing clear insights and seamless integration with warehouse operations.

Specifications

Ares SD2000 - Autonomous Single Deep Scissor Reach Truck

Rated Capacity
4409 lb (2000 kg)
Navigation Method
Laser SLAM navigation
Lifting Height
33 ft (10160 mm)
Aisle Width (For 40”x48” Pallet)
9.76 ft (2975 mm)
Dimensions (L X W X H)
8.5 X 4.4 X 14 ft (2585 X 1364 X 4365 mm)
Fork Size (L x W x T)
1070 mm / 100 mm / 40 mm (LES)
Max Travelling Speed(Loaded/Unloaded)
4.4 mph (1.5 m/s)
Lifting Speed
0.12 mph (55 mm/s)
Top Safety Protection
3D LASER Scanner

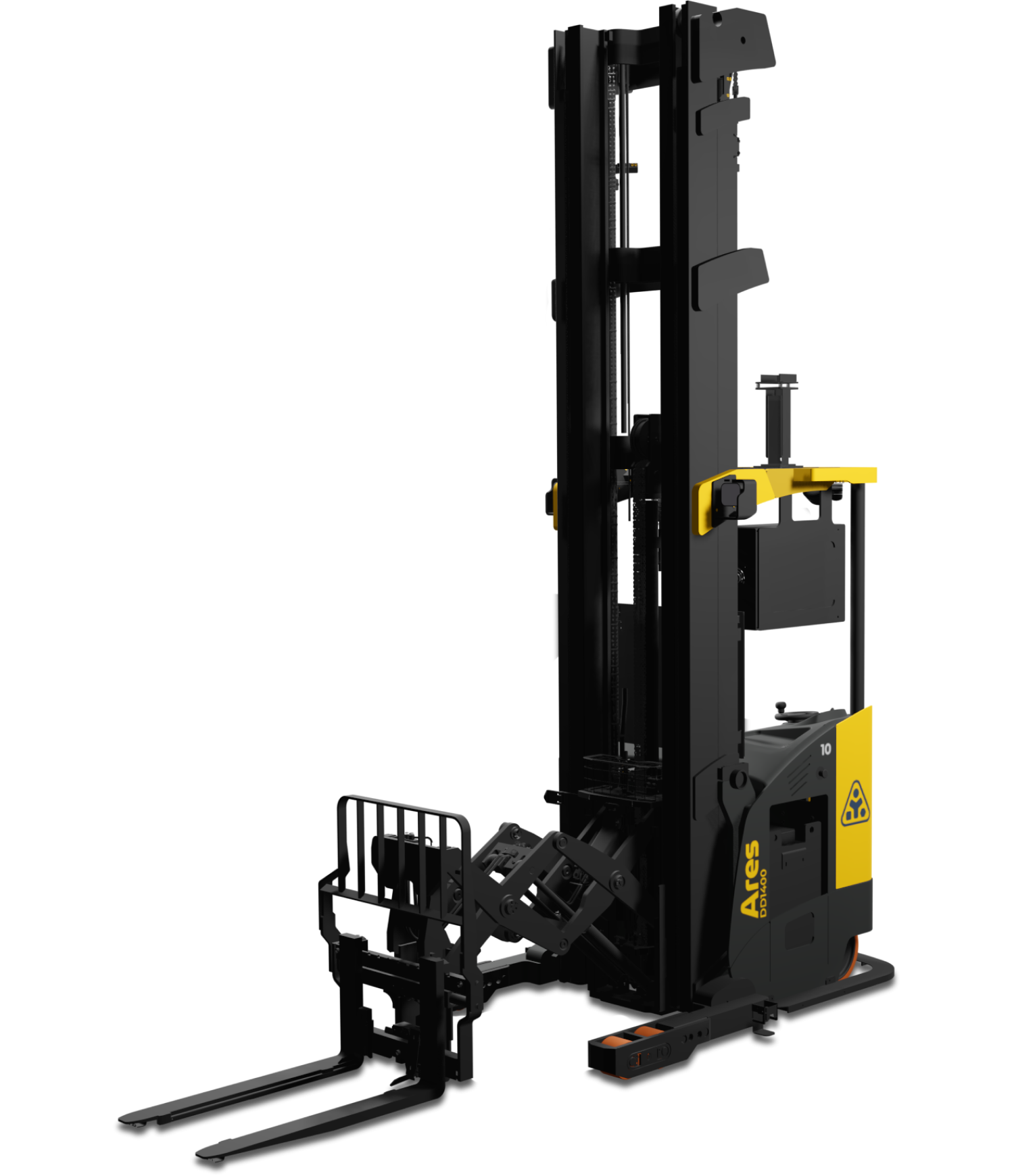

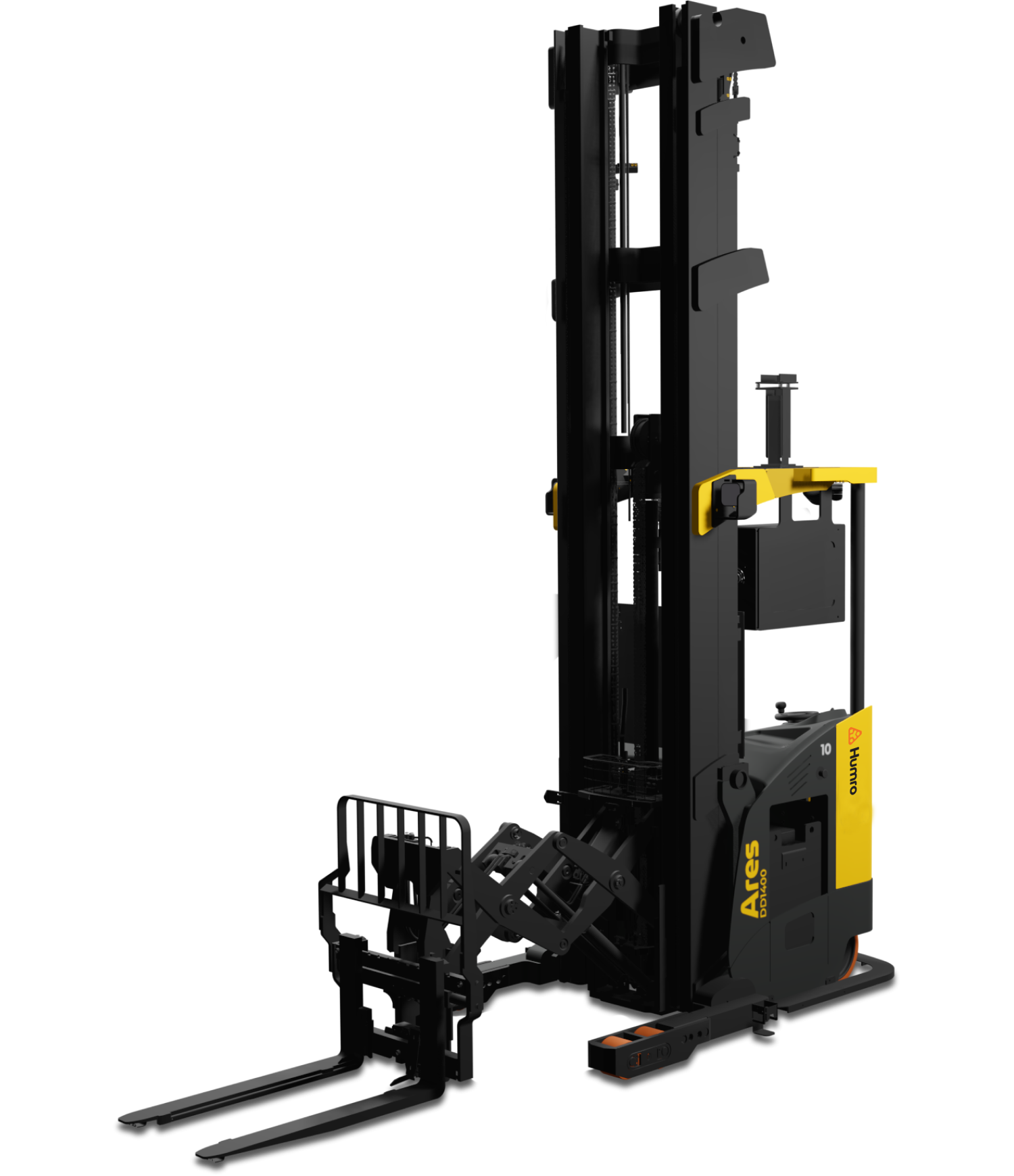

Ares DD1400 - Autonomous Double Deep Scissor Reach Truck

Rated Capacity
3319 lb (2000 kg)
Navigation Method
Laser SLAM navigation
Lifting Height
33 ft (10160 mm)
Aisle Width (For 40”x48” Pallet)
10 ft (3048 mm)
Dimensions (L X W X H)
8.5 X 4.4 X 14 ft (2585 X 1364 X 4365 mm)
Fork Size (L x W x T)
1070 mm / 100 mm / 40 mm (LES)
Max Travelling Speed(Loaded/Unloaded)
4.4 mph (1.5 m/s)
Lifting Speed
1.1 mph (500 mm/s)
Top Safety Protection
3D LASER Scanner
