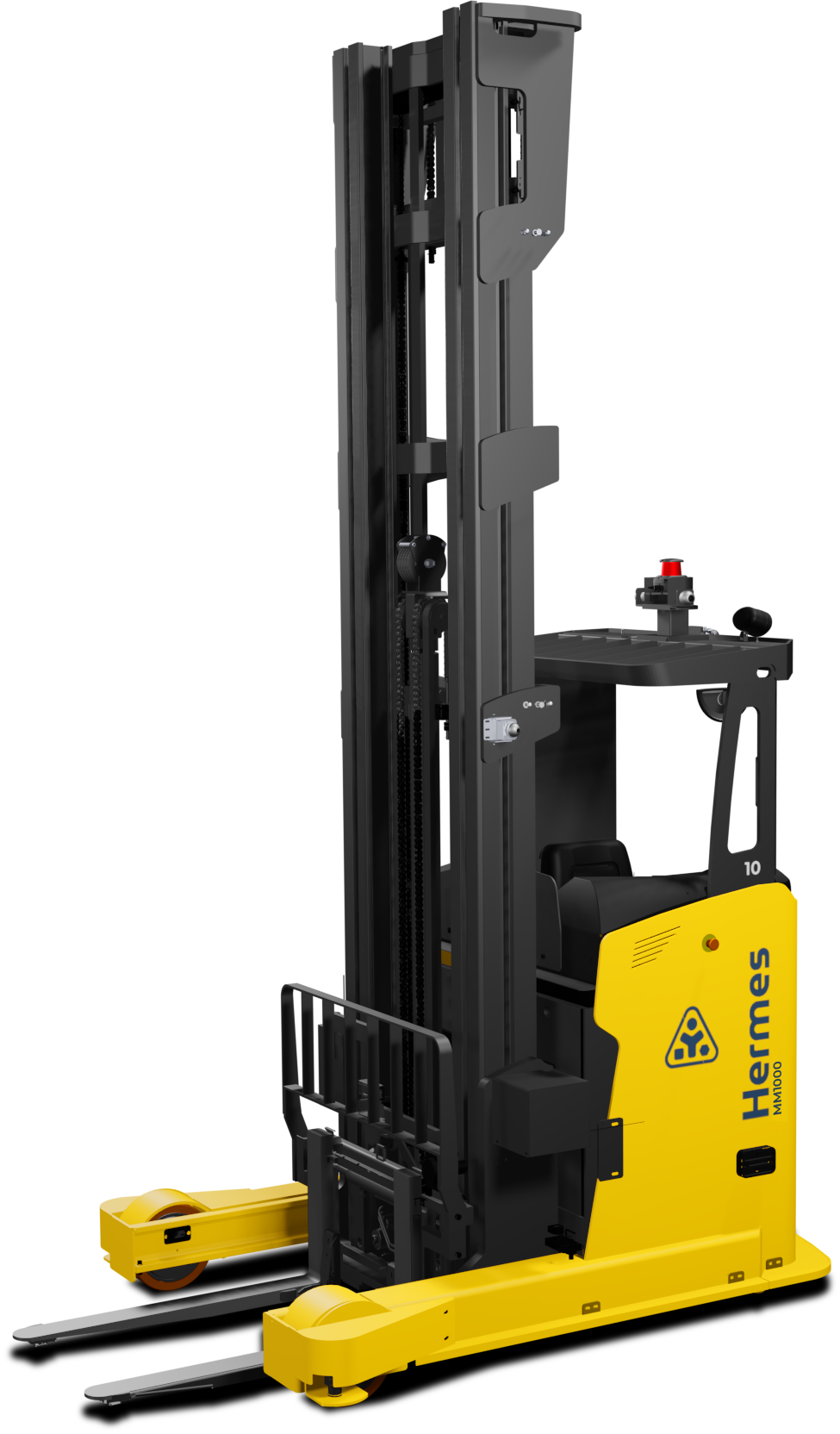

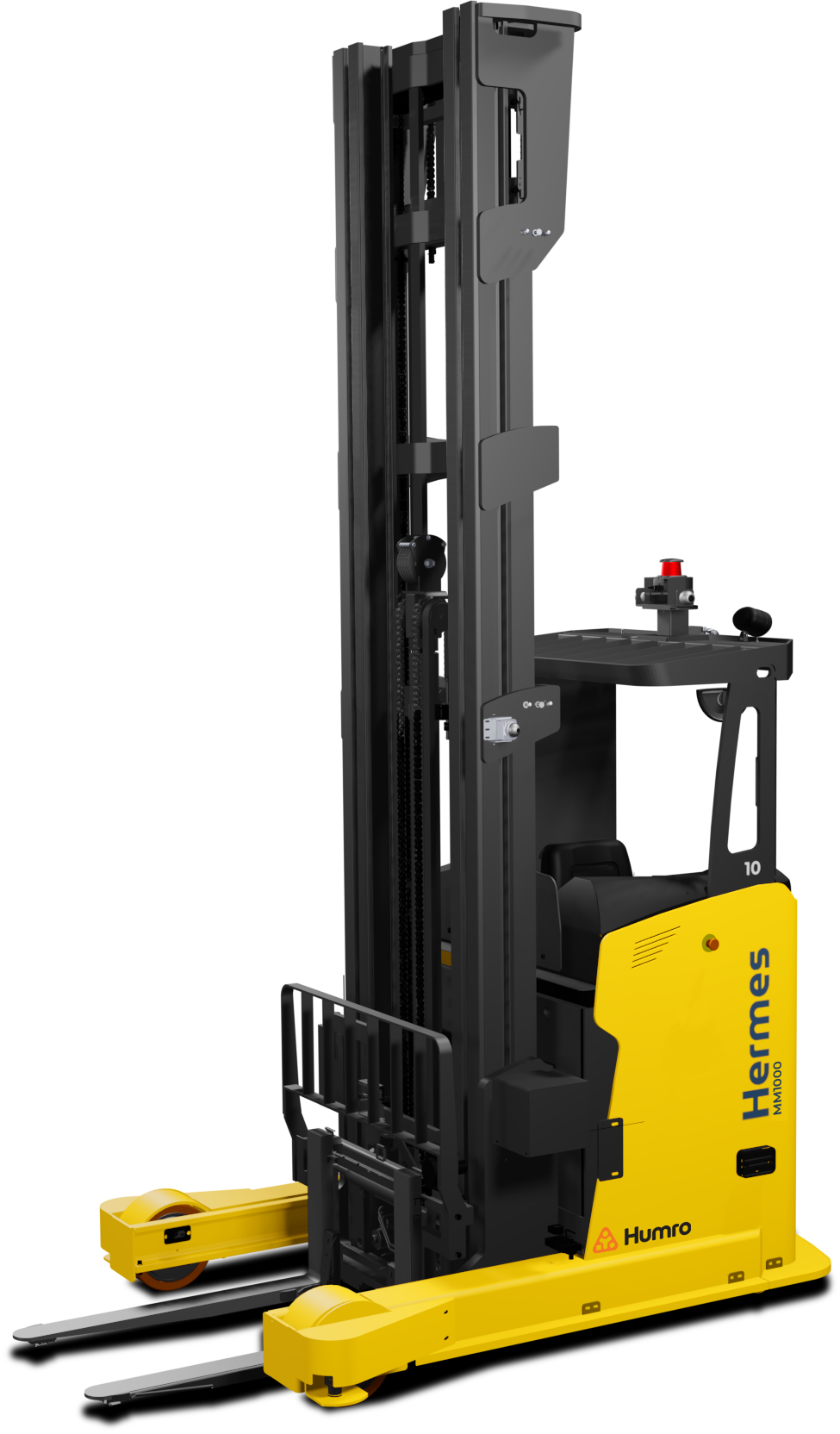

Autonomous Reach Truck Moving Mast

Powered by 3D vision systems dynamic path planning, and high accuracy lift positioning, the Hermes MM1000 enables fully autonomous high rack storage up to 32feet , optimizing vertical space utilization and warehouse

Download Brochure

Hermes

MM1000

Load Capacity

3527lb (1600 kg)

Max Travel Speed

5 mph (2.2 m/s)

Lift Height

32 ft (10,000 mm)

See it in Action

Features

LiDAR Sensors – Scanning

Equipped with sensors, cameras and LiDAR systems to detect obstacles and people in their path. They can slow down or stop to prevent collisions

3D Camera

Designed to detect obstacles in their path and take evasive action to avoid collisions, such as stopping, changing direction, or backing up

Safety features

Robot is equipped with collision avoidance technology and emergency stop for operating safety.

E Stop Buttons

Equipped with sensors, cameras and LiDAR systems to detect obstacles and people in their path. They can slow down or stop to prevent collisions

LiDAR Sensors – SLAM

Programmed to operate within specific zones, and they can be configured to slow down or stop when entering restricted areas or high-traffic zones

Powerful Software

Intuitive, real-time control platform for monitoring, managing, and optimizing robot performance. Providing clear insights and seamless integration with warehouse operations.

Specifications

Rated Capacity
3527 lb (1600 kg)
Navigation Method
Laser SLAM navigation
Lifting Height
32 ft (10000 mm)
Aisle Width (For 40”x48” Pallet)
10.5 ft (3200 mm)
Dimensions (L X W X H)
8.6 X 4.9 X 13.6 ft (2625 X 1484 X 4154 mm)
Fork Dimensions (L x W x T)
3.5 x 0.32 x 0.14 ft (1070×100 ×45 mm)
Max Travelling Speed(Loaded/Unloaded)
4.4 mph (1.96 m/s)
Body Weight (Without Load)
10251lb (4650 kg)
Positional Accuracy (Inch)
(+/-0.4”) (+/-10 mm)
